INSTALLING SELF ADHESIVE EPDM IN A GUTTER
A high quality gutter covering significantly extends the life of a roof or gutter. When looking for a good gutter covering EPDM offers many advantages.
By waterproofing an existing or new gutter with an EPDM membrane the structure is sealed with a very strong protective layer. This protective layer prevents the gutter from being affected by stagnant water or other environmental influences. With an extremely long service life it also lasts longer than most zinc and plastic materials. This makes EPDM a smart choice at all times.
%3Aformat(webp)%3Aquality(75)&w=3840&q=75)

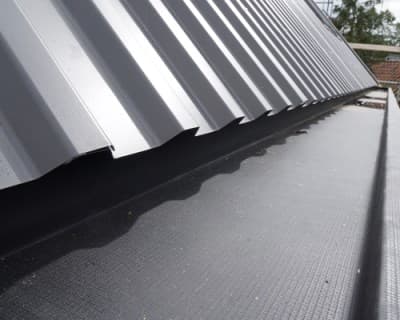

INSTALLATION EXAMPLE
RENOVATION
In the event of a leak, completely replacing a gutter can be extremely costly. Lining the gutter with EPDM can be a more cost effective alternative. The membrane is easy to instal even in places that are difficult to access. EPDM can withstand both very low and very high temperatures and the installation work can be carried out both in winter and summer. This makes EPDM an attractive option for existing concrete and metal gutters.
PREPARE THE SURFACE
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Clear gutter well and remove dust and debris
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Sharp protrusions must be removed
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
use a grinder if necessary
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
It is important to first clean the surface
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Brush and remove the last dirt residues
MEASURING AND CUTTING
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Measure the gutter from the edge
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Up to and including the upstand
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Mark the dimensions on underside of the EPDM strip
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Both in the length and width direction
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Score the release liner on the markers
Position the EPDM membrane
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Put the entire EPDM strip into the gutter
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Fold back the marked parts
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Press into the perimeters
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Partially remove the release film and adhere the EPDM onto the surface
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Compress the EPDM membrane onto the surface with a silicone roller
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
After applying the first part, roll everything in properly
THE DETAILS
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Ensure no air pockets
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Install without creases
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Install EPDM outside corners as necessary
%3Aformat(webp)%3Aquality(75)&w=828&q=75)
Install rainwater outlets as necessary
WATCH THE INSTRUCTION VIDEO
Installation video STRUCTASEAL® Self Adhesive EPDM in a gutter
